Brief Introduction

The pneumatic booster pump system assembles the pneumatic booster pump and various components in a tubular frame or in a closed box according to the actual needs of customers. The structure is compact and easy to use.Pressure gauges, valves, pressure regulators, etc. are all panel-mounted.The output pressure can be adjusted by setting the air pressure regulator.The pump automatically stops when the set pressure is reached, and resumes work when the pressure drops.

0.3－0.8Mpa is driven by ordinary clean compressed air, and the maximum working pressure of the output gas can reach 80MPa. If higher pressure is required, dual drive head booster products can be selected.The maximum working pressure of the output liquid can reach 360MPa.

Machine Description:

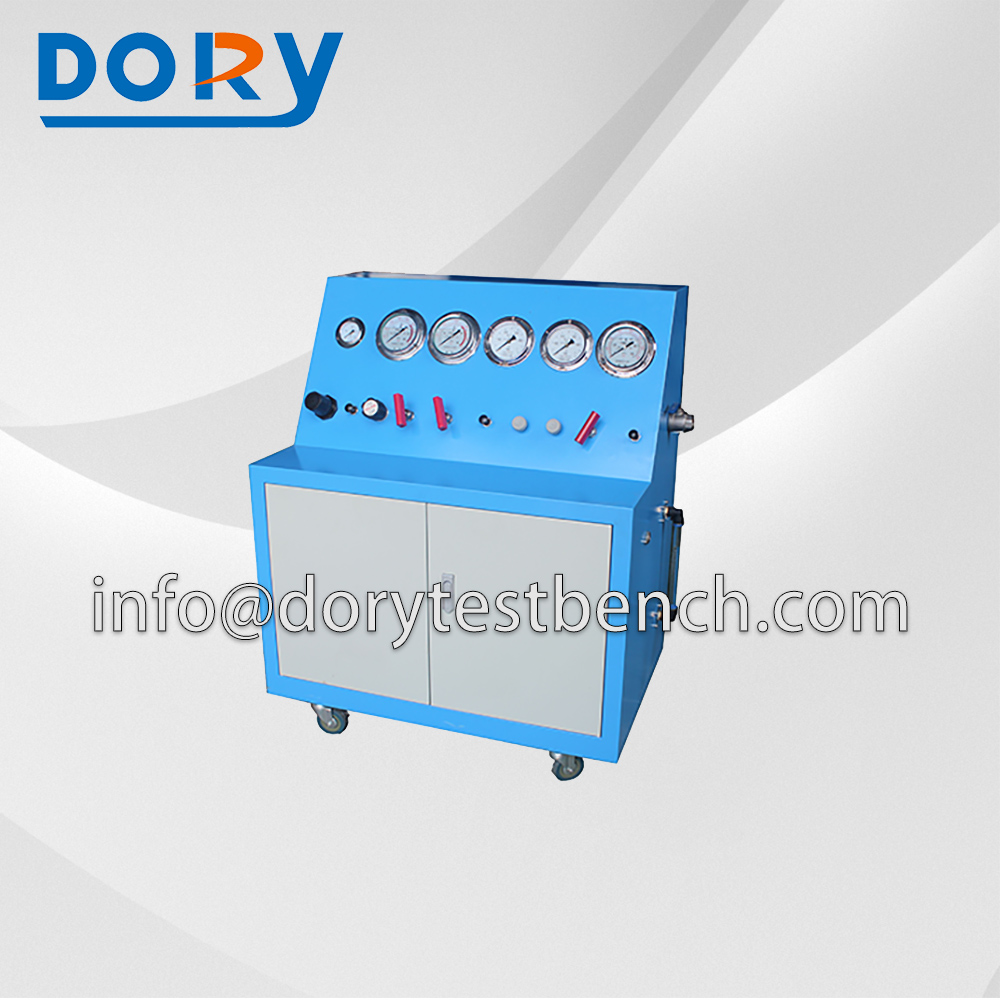

The fluid pressurized control cabinet has been equipped with the fluid booster pump, the drive air water filter, the pressure regulator valve, pressure gauges and manual pressure relieve valve. The main parts of the equipment are assembled in closed stainless steel cabinet or stainless steel frames. The pressure gauge, valve and pressure regulator will be mounted on the panel. The corresponding sign will also be marked on the panel.

The ideal working high pressure can be achieved by adjusting the driving air pressure. When the driving air pressure and output pressure are balanced, the pump will automatically stop the filling pressure, and the output pressure will remain at the preset value.The hydraulic device can be used for pressure testing of various components, research and testing institutions and industrial pressure field.

Booster pump have a variety of pressure ratios. These series of pumps are ideal choice for various hydraulic power operations. The maximum operating pressure up to 50000psi.The output pressure is produced by pneumatic booster pump, therefore the electric connection will not be necessary.The structural design of the fluid pressurized control cabinet are compact. And according to the special requirement of customers, the air driven fluid booster pumps, valves, control switches and other precision accessories are assembled in the frame or closed cabinet.

The pump will stop working automatically when the output pressure reaches the preset value. It will start automatically when the outlet pressure drops slightly or the air drive pressure increases.

Application

• Static and dynamic testing of aerospace accessories after maintenance

• Safety valve calibration

• Bubbling test in water for valves and wellhead devices

• Automobile brake system test

• Communication cable inflatable equipment

• Aircraft tires and hydraulic accumulators are filled with nitrogen

• Auxiliary injection molding, medium and high pressure nitrogen inflation

• Testing of high-pressure gas systems and instruments.

• Demineralization effects, such as reverse osmosis and desalination

• Provide pressure to test or calibrate natural gas components

• Record the power of downhole fluid depth acoustic wave equipment

• Research on the morphology of high-pressure gas flow.

• Provide static and blasting tests for valves, pipe fittings, etc.

• Test of automobile brake system and fuel injector.

• Inject chemical reagents into the pipeline or reactor.

• Canning of refrigerant

• The power of clamping, drilling, shearing, stamping and other equipment

• Overload protection of large presses, mold cushioning and support starting force

• Static and dynamic testing of aerospace accessories

• Performance testing and calibration of instruments and meters

• Water injection for high-pressure cleaning and water cutting equipment

• Oiling of the lubrication system of machinery and equipment

• Clamping power during valve test

• The pressure of the bushing and cylinder liner is pressed in, and the force is pressed out

• Control ground safety valve and underground safety valve
