YFJ-B400 6''-16'' Valve Testing

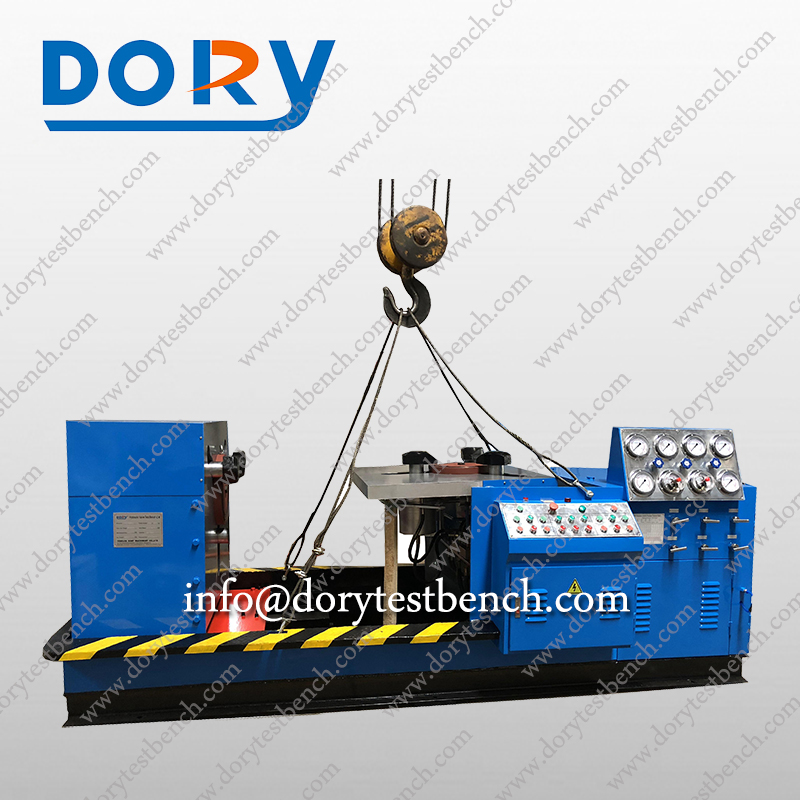

Horizontal Valve Testing Equipments with 3-claw clamping system to the valve flanges DN150-DN400

Valve Types: Gate/Globe/Check/Ball/Plug Valves etc
Size Range: 6''-16'' DN150-DN400
Pressure Range: Class 150-Class1500
Valve End Type: Flanged RF/RTJ
Product description: Horizontal Valve test bench,hydraulic operated from control panel With 3-claw clamping system,body/shell testing with liquid, bi-directional seat testing with air(gas) and liquid
INQUIRY

YFJ-B400 Hydrostatic Valve Testing Bench/ Valve Testing Equipments

(6’’-16’’ DN150-DN400)

Key Features:

● Designed to test Gate,Globe,Check,Ball and Control Valves etc flange ends valves

● Size range: 6’’-16’’ DN150-DN400

● Pressure range: Class 150-Class2500 PN16-PN420

( Pressure to be confirmed as different customers require different pressure ,

customization services available )

● Hydraulic Clamping system with three jaws, by means of clamping flanges

with blind flange adaptors ensure the positive seals of the valve flanges.

● Left work table is movable

● Right work table with 90° rotating function,easy for air low pressure closure testing

● Stainless steel tubes and pipelines available

● With interlock functions for safety

● Testing fluid by water or air ,water with a corrosion inhibitor,

according to international valve testing& Inspection standard like API598,

API6D,MSS-SP-70,ASME B16.34,MSS SP-85,FCI 70-2 etc

● Recycle water tanks,With Recirculating 300 Liter storage reservoir with filter and drain connection,

● Air driven liquid booster pump(Maximator or Haskel)

● Data acquisition system is available, including PLC,Touch screen,

Printer,with test graphs & reports.

●Analogue pressure reading

Testing Range :

Product Name	Horizontal Hydraulic Valve test bench for Flange ends Valves
Model Name	YFJ-B400
Valves to be tested	Flange ends Gate Valve,Globe Valve,Check Valve,Ball Valve,Plug Valves etc
Size Range	DN150-DN400 6'-16''
Pressure Range	Class150-Class900
Clamping Cylinder Dia.	Ø180×3×2
Max Clamping Force	160 Ton
Distance Between two sealing adaptors	270-1200mm
Approx Dimension	3450mm×1650mm×1500mm
